Weldclass Force 290MST Separate Wire Feeder Package - SKU Weldclass:WC-PD290MSTA

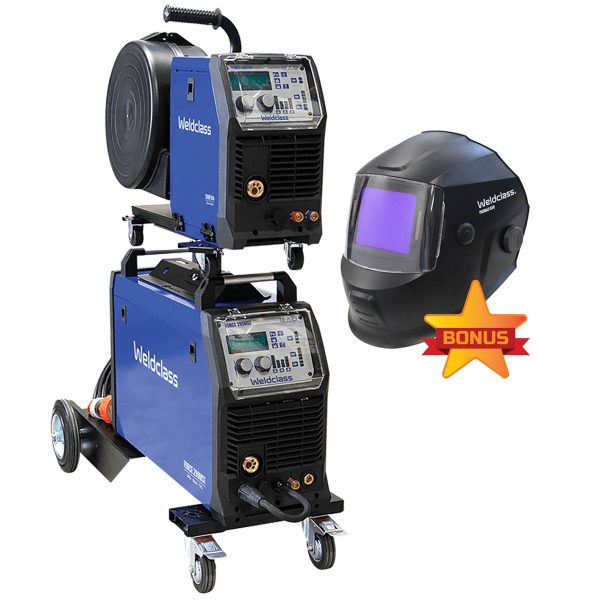

Weldclass Force 290MST Separate Wire Feeder Package

Part numberWC-PD290MSTA

$3,990.00

Indicative price, excluding GST — confirmed in your quote
Add to quote
Ask about this part
Sourced to order. If this item is unavailable we'll offer a suitable equivalent. Freight and any price change are confirmed with you before dispatch. How ordering works →
SKU: Weldclass:WC-PD290MSTA Tags: , ,

Weldclass builds the Force 290MST Separate Wire Feeder Package as a Deal / Clearance /Sale suited to professional workshop and on-site work.

The Weldforce 290MST provides unbeatable grunt from single-phase power, purpose-built for use where where higher output is desired but 3-phase power supply is not available. With a maximum output of 290A @ 55% there's plenty of power to tackle production jobs with wires up to 1.2mm. Available as a stand-alone compact / portable machine, or can be optioned with the WF114 separate wire feeder unit either with initial purchase or as an add-on later if/when required.

Promax 650 Welding Helmet only up to 15 January 2024

At a Glance

  • SWF114 Wire Feeder
  • 8m Interconnecting Cables
  • Max MIG output 290A @ 55% duty cycle
  • Dual Input Modes to 240V 32A plug (optional)
  • Geared 4 roll wire drive system
  • Takes 5kg or 15kg spools
  • Spool Gun Ready
  • MIG (Gas / Gasless)
  • Stick / MMA
  • TIG (DC Lift-Arc)
  • Dual-Purpose Power Source Technology enables the 290MST to be used as a stand-alone compact / portable unit, or fitted with separate wire feeder unit
  • Dual Input Modes to allow use with either 240V 15A plug (fitted), or 240V 32A plug (optional) for full/maximum output**
  • Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
  • Job Save -store custom settings for up to 20 jobs
  • Geared 4-Roll Wire Drive System – for super reliable wire feeding
  • Takes 5kg (D200mm) or 15kg (D300mm)spools
  • MIG functions &; adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
  • Stick/MMA functions &; adjustments include: Hot-Start %, Arc-Force %
  • TIG functions &; adjustments include: Trigger &; Remote Amperage Control on the the torch, Post-Gas Time, Slope-Up Time
  • Generator Compatible – min 15kva, ideal 20+kva (where possible we also recommend investing in generator with 240V 32A outlet)
  • MIG welding <;290A with solid mild steel (0.8-1.2mm), gasless flux-cored (0.8-1.2mm), stainless-steel (0.8-1.2mm), aluminium (0.9-1.2mm), &; bronze/brazing (0.8-1.2mm) wires
  • Stick/MMA welding <;270A with most types of common electrodes (2.0-4.0mm), including steel, stainless-steel, hardfacing &; more
  • TIG welding <;290A (DC lift-arc) of steel, stainless, copper &; chrome molly up to 5-6mm max thickness (NOT a good match for TIG welding of aluminium)
Weight 15 kg
Dimensions 0.4 × 0.8 × 0.6 cm
