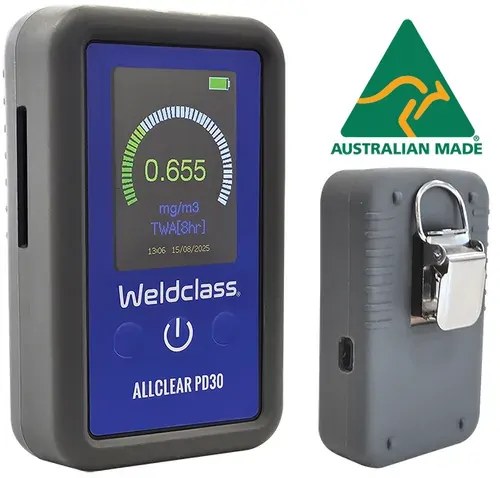

Weldclass ALLCLEAR PD30 Personal Fume Monitor

Weldclass builds the ALLCLEAR PD30 Personal Fume Monitor as a Safety / PPE suited to professional workshop and on-site work.

Stay on top of workplace air quality with the Australian-made ALLCLEAR PD30 personal welding fume monitor. Lightweight and wearable, the PD30 measures welding fumes directly where your people work. Provides real-time, on-device TWA(time-weighted average) fume readings to support compliance with Australian legislation. With 12+ hours of runtime at a 1-second sampling rate and simple. colour-coded display, the PD30 is a dependable and easy-to-use solution for keeping welders safe on the job. PD30 data can be viewed directly on the device, via WiFi on a mobile phone, or through our cloud platform, where multiple/unlimited devices can be connected to monitor fume levels across your workforce and workplace.

At a Glance

• Designed and made in Australia.
• Provides TWA (time weighted average) reading, to support compliance with Australian legislation that specifies TWA standards/limits.
• TWA reading is displayed on the PD30 device (unlike some other devices, where TWA reading is not available on the device itself).
• Small and lightweight – 260g.
• Runtime of 12+ hours with 1-second sample rate.
• Shock absorbent protective rubber cover.
• Tough metal clip attaches to clothing or belts.
• PD30 device: Real-time TWA reading.
• Mobile phone web app (free, single device only, connect via WiFi): Real-time TWA reading, alarm settings, download historical readings (up to 3 years) via CSV.
• Cloud platform: Connect an unlimited number of PD30 devices to track and monitor TWA readings across entire worksites, download historical readings, etc., from one portal. Subscription fee per device applies.

Specifications

• Dimensions: H120 x W74 x D32mm
• Weight: 260g
• Charge cable connection: USB-C
• Battery life: 12+ hours, or 18 hours in power save mode
• Data connection: WiFi
• Data storage: 3 years
• Mounting: Metal material/clothing clip + D-loop ring
• Particle size detection range: 0.3um – 10um
• Warnings: Inhalable / Respirable TWA8H (Time Weighted 8 Hours), and Inhalable / Respirable STEL (Short Term Exposure Limit)
• Housing material: Silicone rubber
• Battery size/type: 3.7V lithium ion
• Charger specifications: 240V 10A, 5V 1amp, USB-C connection
• Data connection: WiFi 802.11 b/g/n
• CPU: 240 Mhz
• Operating temperature range: 10OC to +60OC
• Measuring method: Photometric (scattered laser)
• Operating humidity range: 0-90%, non-condensing
• Measurement interval: 1 per second
• Sampling method: Dynamic controlled fan
• Display: 2.4-inch TFT, full colour
• Calibration and maintenance: Return to Weldclass for service & calibration every 2 years from the date of issue
• Country of origin: Made in Australia
• Datalog file format: CSV
• Datalog file grouping: Daily
• Datalog retrieval: Web server, to a smart device or PC
• Memory capacity: 16GB SD card + 4GB internal
