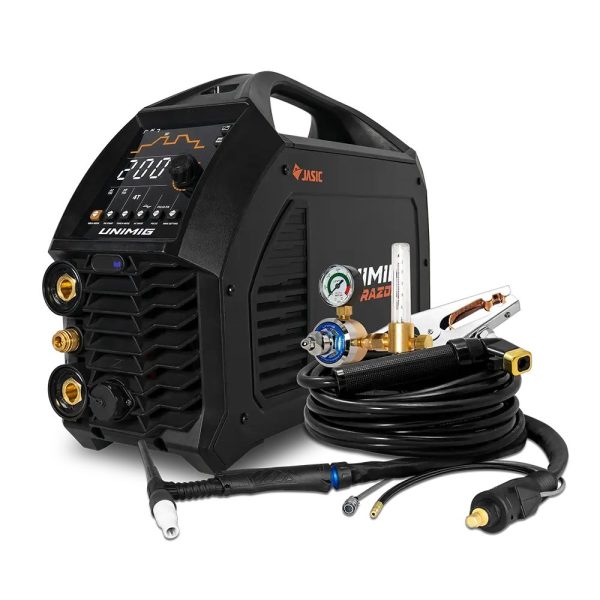

Unimig Razor TIG 200 AC/DC Welder

Unimig builds the Razor TIG 200 AC/DC Welder as a Deal / Clearance /Sale suited to professional workshop and on-site work.

Get incredible results from start to finish with this professional-grade TIG welder.

At a Glance

• Effortlessly weld any metal with the high-frequency AC/DC TIG
• The ultimate combination of AC and DC is available with Mixed Arc settings
• Switch your AC welds to suit your needs with the choice of three waveforms
• RAZOR TIG 200 AC/DC Welder
• 8m T2 TIG Torch
• 4m Twist Lock Electrode Holder
• 4m 300A Earth Clamp & Lead
• Argon Flowmeter Regulator
• 1.8m Quick-Connect Gas Hose
• Operating Manual
• HD Backlit Interface: This next-generation interface panel is bright and easy to read in any environment.
• Ultimate TIG Welding: Weld every kind of metal. With the ability to run on an Alternating Current (AC), you're able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
• Multiple AC Waveforms: Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
• Sine: The slow, smooth transition between positive and negative gives a consistent weld and good wetting in the toes
• Square: The rapid transitions between positive and negative deliver a stable arc, deep penetration, faster travel speeds, and a fast-freezing puddle
• Triangle: The fast transitions between positive and negative and minimal heat input make it optimal for maintaining weld quality on thin or delicate materials.
• Mixed AC/DC: Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC-TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
• Accessories: Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG, or MMA accessories to your welder.
• Foot Pedal: Enjoy greater control and precision with our optional foot control accessory. This handy feature enables you to easily adjust your TIG amperage on the fly, without interrupting your torch movement. Wireless and wired options are available.
• Water Cooler: Maximise your TIG welding performance, especially at high amperages. When combined with the T3W Water-Cooled TIG Torch, which uses Bi-Flow™ Technology, you get greater performance from the TIG torch.
• Inverter Technology: Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
• Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
• 10A Plug: Plug in and play. The 10A plug is suitable for use on any domestic outlet, so it's well matched to the DIY home handyman or the professional welder looking to take it anywhere.
• Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimizes the number of contaminants being pulled through the machine.
• Active Air Passage: The active air passage works to contain the air that passes through the machine, keeping the electrical components protected from dust to improve performance and extend the life of your welder.
• IP23S: Rated IP23S, so it's protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
• Advanced MMA Features: Advanced MMA features are developed for improving weld quality and ease of use.
• Arc Force: The Arc Force feature helps keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Hot Start: The adjustable hot start is engineered to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
• Anti-Stick: The Anti-Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.

Product Specifications

• Primary Input Voltage: 240V Single-Phase
• Ieff (A): 9.5
• No Load Voltage (V): 65.0
• Protection Class: IP23S
• Minimum Generator (kVA): 8.0
• Standard: AS 60974.1
• Weight (kg): 11.7
• Suitable Materials: TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys MMA: Mild Steel, Stainless Steel, Cast Iron
• Supply Plug: 10A
• IMAX (A): 21.1
• No Load Voltage with VRD Active (V): 11.5
• Insulation Class: H
• Dinse Connector: 35/50
• Warranty: 5 Years
• TIG Ignition Type: AC/DC High Frequency AC/DC Lift Arc
• TIG Duty Cycle @ 40°C: 20% @ 200A 60% @ 115A 100% @ 90A
• TIG Current Range: 5-200A
• TIG Welding Thickness Range: 1-8mm
• MMA Current Range: 20-160A
• MMA Electrode Range: 2.5-4.0mm
• MMA Duty Cycle @ 40°C: 15% @ 160A 60% @ 80A 100% @ 62A
• MMA Welding Thickness Range: 2-10mm
