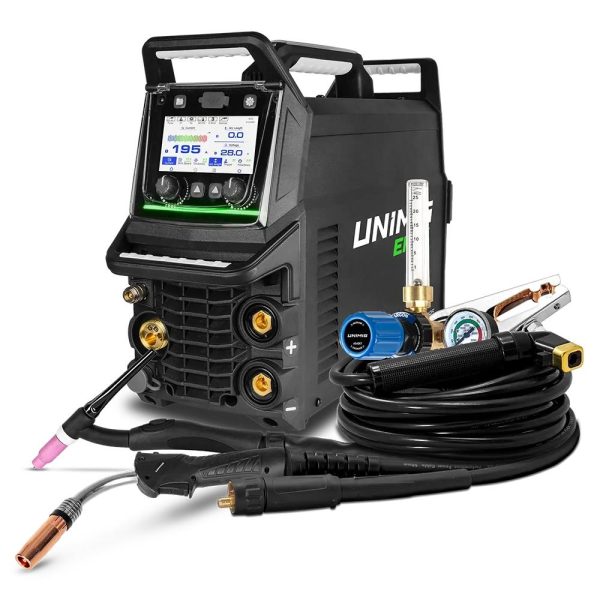

Unimig ENVY Multi 195 Welder U11204

The ENVY Multi 195 Welder U11204 is a Deal / Clearance /Sale from Unimig, built for trade and industrial use.

Pick up from Wetherill Park

Why Choose This Product

• Double Pulse MIG: A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than single pulse, while still maintaining all of the benefits. Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray MIG.
• Superior DC TIG Welding: Get unmatched welds on steel. With Direct Current (DC) TIG welding, you get smooth, stable arcs for flawless welds on mild and stainless steels, delivering clean results and maximum control on every joint.
• Power Factor Correction: Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
• Foot Control Ready: This machine supports the connection of both a wired and wireless foot control for extra versatility and convenience while welding. You can adjust your amperage hands-free to avoid disrupting your torch movement, and the wireless option lowers cables and adds greater manoeuvrability as well.
• 5" LCD Touchscreen: Navigation has never been easier. With the 5" LCD touchscreen, selecting your weld parameters or changing your settings mid-weld is effortless. Prefer physical buttons? Use the traditional control knobs to make all of your adjustments.
• Digital 4 Geared Wire Drive: Experience unparalleled accuracy with our Digital 4 Geared Wire Drive system. Developed to sustain a consistent arc in varying conditions and with different wire types, it helps ensure an accurate wire feed speed. With this system, achieving precision in every welding task is effortless.
• Push-Pull Gun Ready: Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a 'Pull' motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.
• MIG Smart-Set: Setting up for a weld has never been easier. Just set your wire material and size, gas, and joint type, and you're ready to weld!
• Hot Start: Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier.
• Crater Fill: End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
• Adjustable Arc Length: Get absolute precision on your settings. The adjustable arc length permits you to increase or decrease the preselected voltage while in synergic and pulse MIG modes.
• Spool Gun Ready: Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
• Higher Pulse Frequency: With a pulse frequency as high as 999 pulses per second in DC TIG, you can get as many pulses as you need for any scenario.
• TIG Smart-Set: The easiest way to set up for a TIG weld, simply set your filler material, joint type, tungsten diameter, and material thickness, and you're good to go!
• Heat Control Trigger (HCT) Mode: Heat Control Trigger Mode lets you set a base current, which you can switch to at any time during a weld by pressing the trigger button. Heat Control Trigger Mode is well suited to manual heat input control as you go.
• Power Limit: The adjustable power limit is developed to help maintain a constant power level while welding. Power limit automatically drops the current to a set limit and prevents it from rising to maintain a constant power when the electrode is lifted from the weld pool.
• Anti-Stick: The built-in anti-stick is developed to keep you from ever sticking an electrode again, whether you're at the start of a weld, halfway through or about to end one. When the machine detects that the electrode is sticking, the current will shut off and unstick it.
• Pulse MMA: Pulse MMA welding helps reduce spatter, improves heat control and permits for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the "Christmas Tree" technique, while still maintaining root fusion.
• Inverter Technology: Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability
• Job Memory: The job memory function permits you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 100 Jobs can be memorised and stored for recall.
• Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 8.5kVA for this machine.
• Inductance Control: Take complete control of your arc with the inductance settings. By changing the frequency of your short-circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
• Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
• Burnback Adjustment: Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.
• Tungsten Optimiser: Select the tungsten diameter and get an optimised welding arc ignition in DC TIG based on the chosen diameter.

Technical Details

• SKU: U11204
• Primary Input Voltage: 240V Single-Phase
• Supply Plug: 10A
• leff (A): 9.9
• Imax (A): 25.5
• Rated Output: 25-195A
• No Load Voltage (V): 75
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator (kVA): 8.5
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Welds: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
• Warranty (Years): 5
• MIG Welding Current Range: 25-195A
• MIG Duty Cycle @ 40°C: 15% @ 195A 60% @ 98A 100% @ 76A
• MIG Wire Size Range: 0.6-1.2mm
• MIG Wire Spool Size: 1kg (100mm) / 5kg (200mm)
• MIG Welding Thickness Range: 1-10mm
• Drive Roller Size: 30/22
• TIG Function Type: DC HF TIG & DC Pulse
• TIG Welsing Current Range: 10-195A
• TIG Duty Cycle @ 40°C: 10% @ 195A 60% @ 112A 100% @ 87A
• TIG Welding Thickness Range: 1-8mm
• MMA Welding Current Range: 10-195A
• MMA Duty Cycle @ 40°C: 10% @ 195A 60% @ 112A 100% @ 87A
• MMA Electrode Range: 2.5-4.0mm
• MMA Welding Thickness Range: 2-12mm
• Dimensions (mm): 640 x 210 x 400
• Weight (kg): 15.5
