Engineered by Semikron, the Dual Thyristor Module 100A 1600V 4 Pin A 5 SKKT92/16E is an Electrical chosen for consistent, repeatable results.

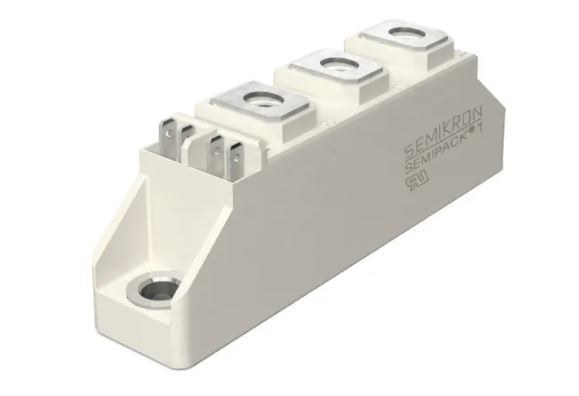

Dual Thyristor Diode 100A 1600V 4 Pin A 5 Semikron SKKT92/16E

Dual Thyristor Modules, SKKT SEMIPACK 1 Series, Semikron Dual series thyristors

Approvals UL recognised component

Thyristors – Semikron A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR). Encapsulated modules with electrically isolated base plate. A good match for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.

Product Specifications

Attribute: Value
Rated Average On-State Current: 100A
Repetitive Peak Reverse Voltage: 1600V
Surge Current Rating: 2500A
Mounting Type: Panel Mount
Package Type: A 10
Pin Count: 3
Peak On-State Voltage: 1.35V
Repetitive Peak Forward Blocking Voltage: 1600V
Repetitive Peak Off-State Current: 5mA
Dimensions: 93 x 20 x 30mm
Maximum Operating Temperature: +125 °C
Minimum Operating Temperature: 40 °C

Dimensions	0.2 × 0.2 × 0.2 cm
Brand	Semikron
